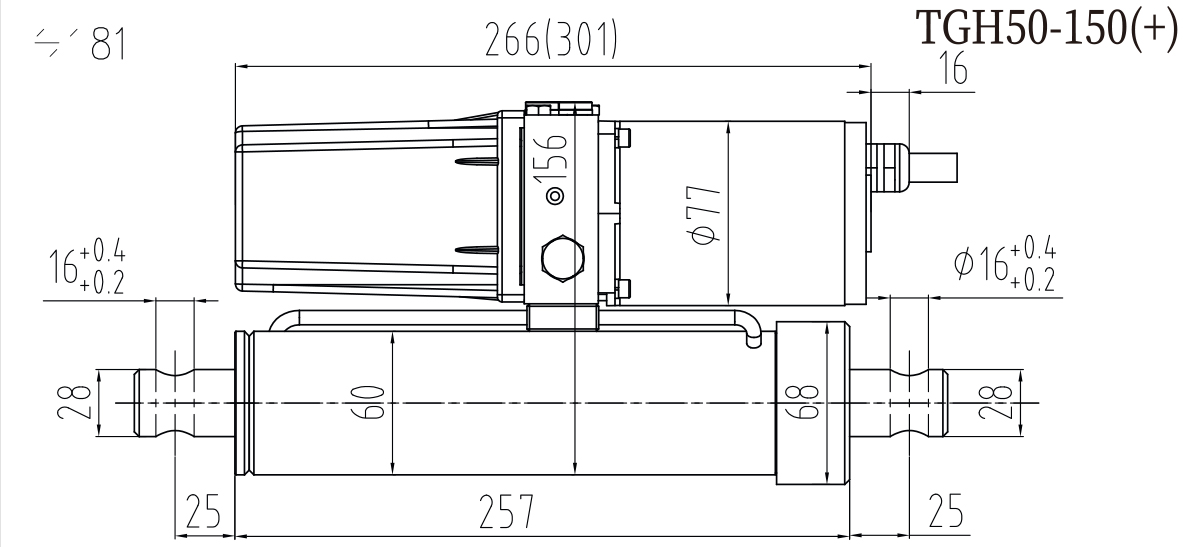

| Item | TGH50-150 | |
| Voltage | DC220V/DC12V/24V/48V | DC220V/DC24V/48V |
| Power | 300W | 800W |
| Stroke | 150mm | 150mm |
| Top of the lift | 2.5T | 2.5T |
| Retraction force | 1.5T | 1.5T |
| Load speed | 5-6mm/s | 10-11mm/s |
| Temperature | -30~70°C | -30~70°C |
| Frequency | 4min/each time | 6min/each time |
| Waterproof rate | IPX6 | IPX6 |
| N.W/G.W | 6.7KG/7KG | 7.7KG/8KG |
| Packing Size | 40X20X13CM | 40X20X13CM |
