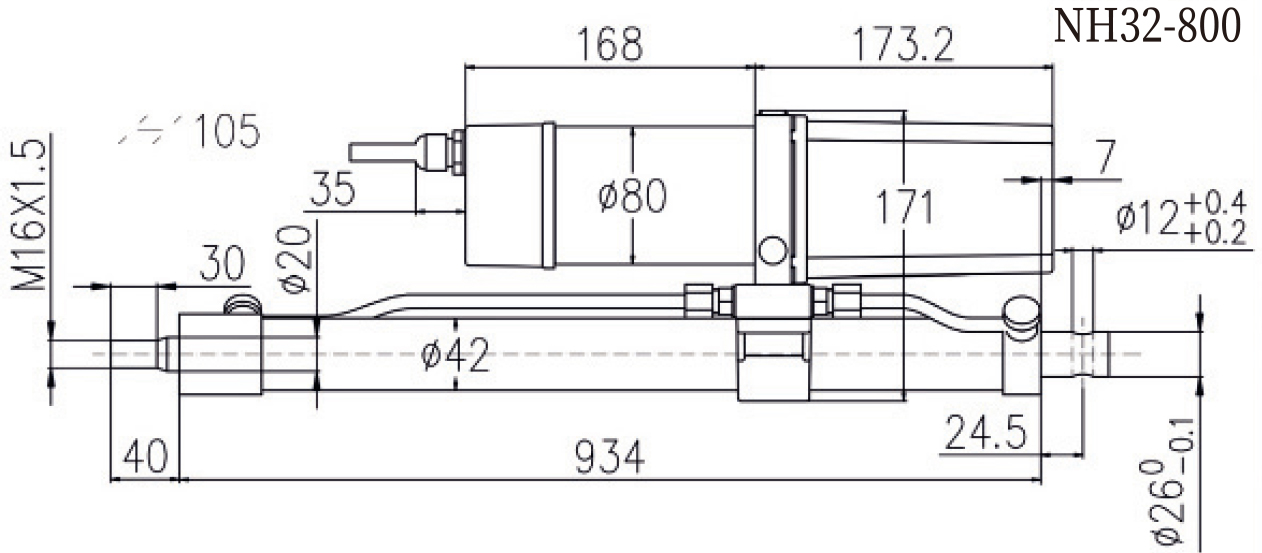

| Item | NH32-800 | NH32-800 | NH32-800 |
| Voltage | DC24V/48V | DC24V/48V | DC24V/48V |
| Power | 800W | 1000W | 1200W |
| Displacement | 0.38cc | 0.6cc | 0.88cc |
| Stroke | 800mm | 800mm | 800mm |
| Top of the lift | 1.5T | 1.3T | 1.1T |
| Retraction force | 0.7T | 0.7T | 0.7T |
| Load speed | 25-26mm/s | 39-40mm/s | 55-56mm/s |
| Temperature | -30~70°C | -30~70°C | -30~70°C |
| Frequency | 6min/each time | 6min/each time | 6min/each time |
| Waterproof rate | IPX5 | IPX5 | IPX5 |
| N.W/G.W | 12.62KG/13.32KG | ||
| Packing Size | 105X13X20CM |
